XG Scales

Rinstrum XG series are sturdy, economic industrial bench scales designed for years of rugged use. Sizes range from 300mm x 300mm to 500mm x 600mm with capacities from 15kg single range or 6kg in multirange to 300kg in approved versions and up to 500kg in non-trade custom versions. The scale is available in a range of different indicator mounting options, indicators, and firmware to suit the application functionality and working environment.

Optional M12 cables allowing for fast setup and replication of saved RIS settings via a viewer, and factory calibration make this platform series excellent for drop ship customers.

Easy maintenance & operation

  • Clear open frame – easy to keep clean
  • Removable low sided pan – deflect splatter and easy cleaning
  • Sturdy pan construction – no warping
  • 2 Axis rotating head – for best operator viewing angle
Capacity x Resolution 300 x 300 (S) 300 x 400 (M) 400 x 500 (L) 500 x 600 (XL)
15 kg x 0.005 kg         ✓         ✓         –         –
30 kg x 0.01 kg         ✓         ✓         ✓         –
60 kg x 0.02 kg         ✓         ✓         ✓         ✓
150 kg x 0.05 kg         ✓         ✓         ✓         ✓
300 kg x 0.1 kg         –         –         ✓         ✓
 * Options for customisation of capacity, resolution and base available.
C320 Indicator
  • Independently sealed keypad with mechanical key switches
  • Gravity compensation
  • 9 colour configurable RGB backlight for multi-band check weighing and indication
  • Note: C350 and C357 available on request.
  • Firmware available depending on what functionality is required
X320 Indicator
  • Tough enclosure – Impact resistant composite alloy housing
  • IP68 and IP69K rated
  • AC/DC/Battery Power Options
  • 3 band check weighing
SKU: 1042 Category:

Description

Key Highlights & Features

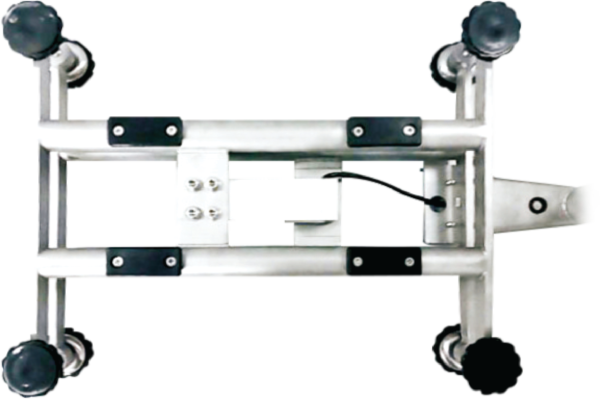

  • 304 stainless steel platter and frame assembly
  • 36-38mm (1.5 in) 304 stainless tubal pole or SS front bracket option
  • 5 point overload protection
  • Anti slip adjustable levelling feet
  • IP65 moisture protected Aluminium load cells
  • NMI Approved – 6/4C/256/ & Certificate 2450 (New Zealand)
  • NTEP approved – 19-147
  • Overload recording increments every time the scale is overloaded

Product Description

Rinstrum XG series are sturdy, economic industrial bench scales designed for years of rugged use. Sizes range from 300mm x 300mm to 500mm x 600mm with capacities from 15kg single range or 6kg in multirange to 300kg in approved versions and up to 500kg in non-trade custom versions. The scale is available in a range of different indicator mounting options, indicators, and firmware to suit the application functionality and working environment.

Optional M12 cables allowing for fast setup and replication of saved RIS settings via a viewer, and factory calibration make this platform series excellent for drop ship customers.

Easy maintenance & operation

  • Clear open frame – easy to keep clean
  • Removable low sided pan – deflect splatter and easy cleaning
  • Sturdy pan construction – no warping
  • 2 Axis rotating head – for best operator viewing angle
Capacity x Resolution 300 x 300 (S) 300 x 400 (M) 400 x 500 (L) 500 x 600 (XL)
15 kg x 0.005 kg         ✓         ✓         -         -
30 kg x 0.01 kg         ✓         ✓         ✓         -
60 kg x 0.02 kg         ✓         ✓         ✓         ✓
150 kg x 0.05 kg         ✓         ✓         ✓         ✓
300 kg x 0.1 kg         -         -         ✓         ✓
 * Options for customisation of capacity, resolution and base available.
C320 Indicator
  • Independently sealed keypad with mechanical key switches
  • Gravity compensation
  • 9 colour configurable RGB backlight for multi-band check weighing and indication
  • Note: C350 and C357 available on request.
  • Firmware available depending on what functionality is required
X320 Indicator
  • Tough enclosure – Impact resistant composite alloy housing
  • IP68 and IP69K rated
  • AC/DC/Battery Power Options
  • 3 band check weighing

How to assemble an XG base

By loading this video, you agree to the privacy policy of Youtube.

Smart Weighing

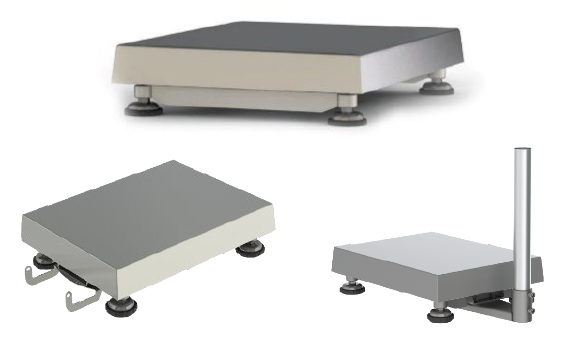

  • Flexible factory fit mounting options:

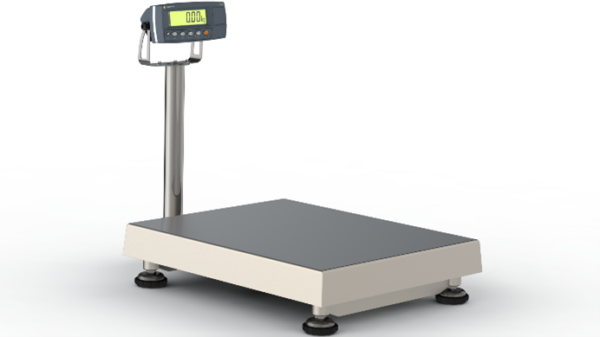

    • Options for post in either short, long or no post for wall mounting

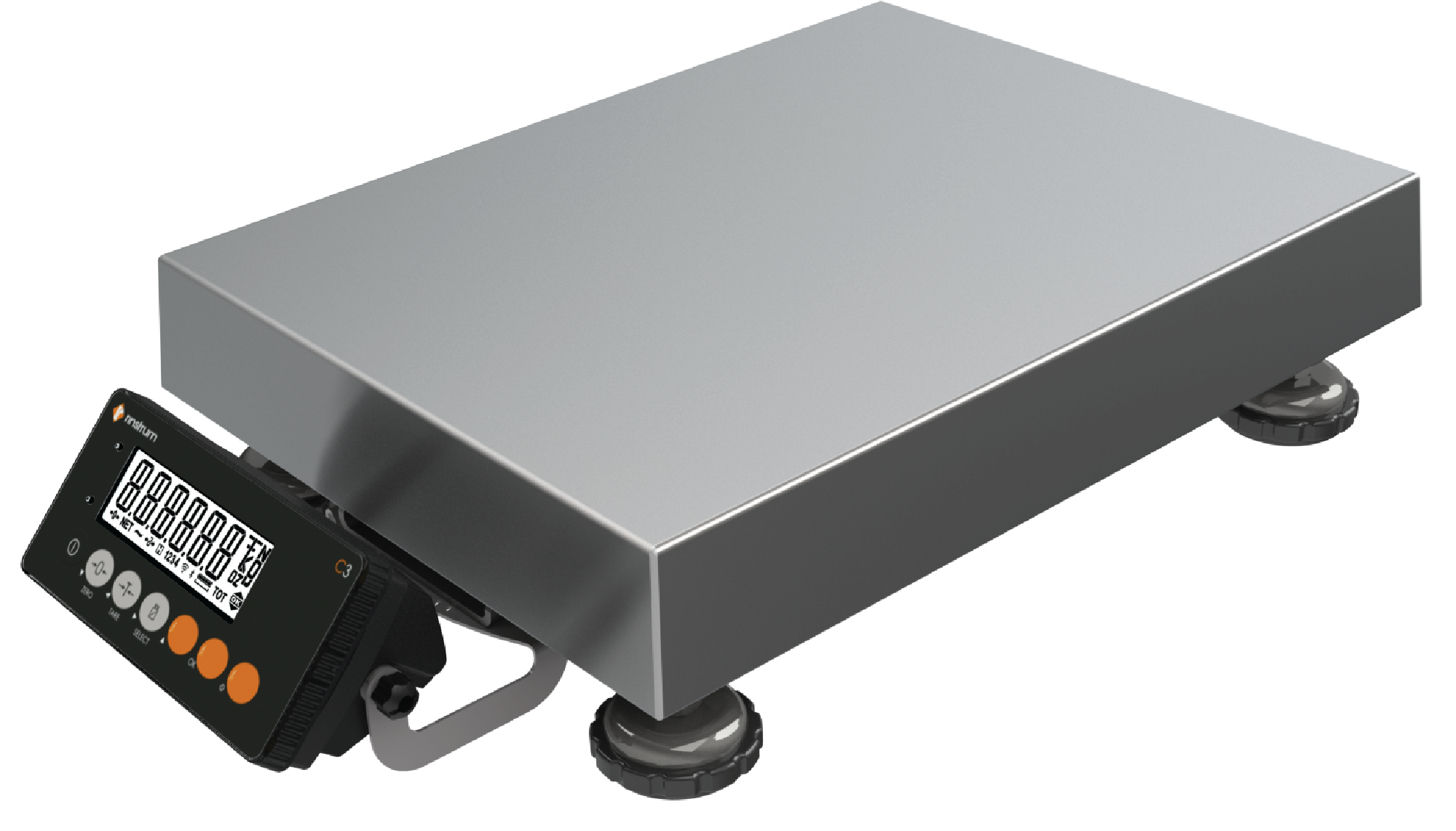

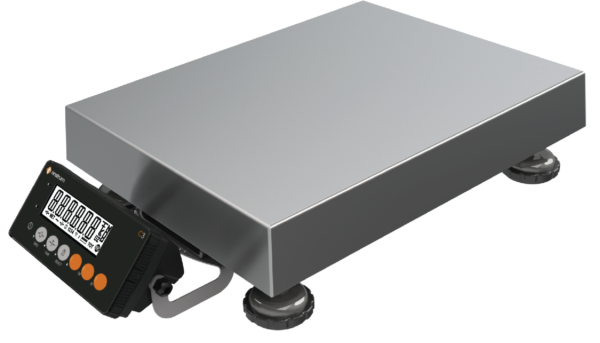

    • Front mounting on C3 and R3
  • Flexible firmware for enhanced functionality for more complex applications:
    • Setpoints
    • Advanced animal weighing

...now that's smart weighing

Product Downloads

The following files are available for download for the XG Scales. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.

To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.

If a save dialogue box does not appear, right click on the link and select save target as.

Files

  XG Scales Brochure - ROW Version XG Scales Brochure - ROW Version

21/08/2025 - 926KB (PDF) file - X00G-700-253-ROW-M02
  XG Scales Brochure - US Version XG Scales Brochure - US Version

21/08/2025 - 1MB (PDF) file - X00G-700-253-US-M04
  XG Scales Datasheet - ROW Version XG Scales Datasheet - ROW Version

21/08/2025 - 595KB (PDF) file - X00G-703-101-M01
  XG Scales Datasheet - US Version XG Scales Datasheet - US Version

21/08/2025 - 665KB (PDF) file - X00G-703-101-M02
