Truck Weighing – Multi Deck

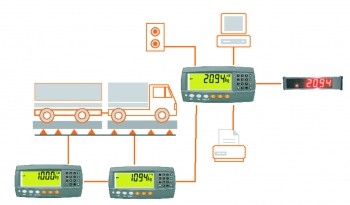

Multi deck weigh bridges are an extension of the single deck application with the addition of a summing indicator.

The R400 summing unit – R420-K481 will sum up to 9 slave units, from either the R400 family or the R300 family of indicators.

The 6700 Summing Remote Display would be used to sum the weight across multiple 5000 series indicators.

Supported Products

Summing

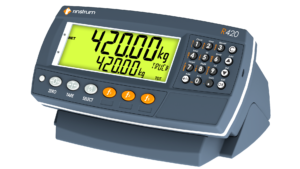

  • R400 K481 Summing indicator
    • The K481 Summing Indicator will sum multiple R400 indicators.  It is based on the R400 Series indicator hardware and shares the same style operator interface and setup menus.
  • 6700 Summing Master Mode

    The 6700 acts as a master controller for a number of slave 5000 units connected together on a multi-drop serial RS422/RS485 bus.

    • The 6700 polls each of the slave units and sums all of the weight readings.
    • The resulting total weight is displayed on the 6700.
R400 Series Indicators

  • R400 Series K405 Application Software
    • K405 allows for a range of operational scenarios all in one setup, from weigh-in/weigh-out to stored truck ids

The dedicated Truck ID button and Print button simplify the operator interface. Additionally the alpha-numeric keypad allows for easy entry of tare weight and Truck IDs.

The following R400 series features make it ideal for the application:

  • Support for up to 16 x 350 ohm, easily handling a typical 8 load cell bridge.
  • Built-in communications ports – for connection to printer and remote display.
  • Isolated communication module.
  • Alibi (data storage device DSD) module for traceability.


R457 L404 LUA

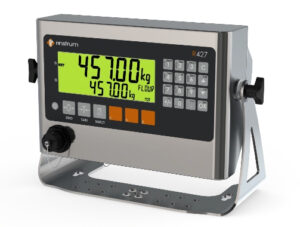

  • R457 L404 enhanced with LUA
    • Rinstrum truck weighing options now includes our R457 stainless steel indicator with the L404 application to provide ethernet, USB, truck database and web interface.

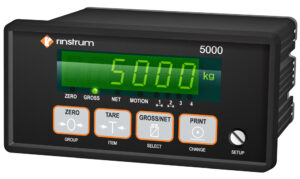

5000 Series Indicators

The 5000 series indicators have been used extensively on weigh bridges.

  • Built in RS232 serial communication and RS485 networking
  • High contrast LED display
  • Analogue Output 4-20mA or 0-10V with 1/65,000 resolution
  • DIN standard housing – units can be readily mounted into standard DIN cut outs, reducing modifications to the units they are being installed into.
  • High current outputs reduce wiring and the need for external relays.
  • Isolated outputs eliminates the possibility of the external control systems influencing the weighing process
  • Robust I/O reduces unplanned outages due to component failure

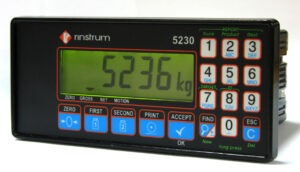

The 5230 specifically handles:

  • Single Weighing with Weigh In-Out
  • Batch Process Single Weighing (In-Out) where a product fill is performed directly on the weighbridge. The optional outputs could be used to control a product fill from a silo, for example.
  • Multiple and Variable Axle Weighing (In-Out) – allows up to 10 axles of a vehicle to be weighed and the weights stored as the transaction.
  • 200 memory allocations – to store truck, product and destination identification
  • Material usage reporting – against truck ID and destination ID.



Large Remote Displays

Select from one of our large remote displays with Super Bright LEDs that enable outdoor usage for industrial applications, to inform the driver on the weigh bridge.

  • The D841 is a 4 inch (102 mm) remote display with traffic lights
  • The D850 is a 5 inch (127 mm) remote display which displays STOP and GO rather than traffic lights
  • D850 can be placed at 70m (230 feet) at 120 degrees viewing angle and it allows for kg, lb, t and g units to show on display along with STOP and GO
Junction Boxes

Junction Box

  • The 0071 Summing Box takes up to 6 load cell inputs and can be daisy chained with another 0071 to handle up to 11 load cell inputs.
  • 0078 junction boxes can take up to 5 load cell inputs with PG7 polymer glands signal trimming . They have a stainless steel housing with IP68 rating.
Zemic load cells
  • Zemic BM14C trade approved in Australia.
