Key Highlights & Features

Product Description

The L401 is a general-purpose indicator suitable for weigh bridges, general trade weighing, multiple indicator weighing systems and process control.  The Scale Entry/Exist features make the L401 ideal for unmanned weigh bridges.

Transaction Log in .csv format

USB event to copy .csv file to USB and clear local copy upon user approval

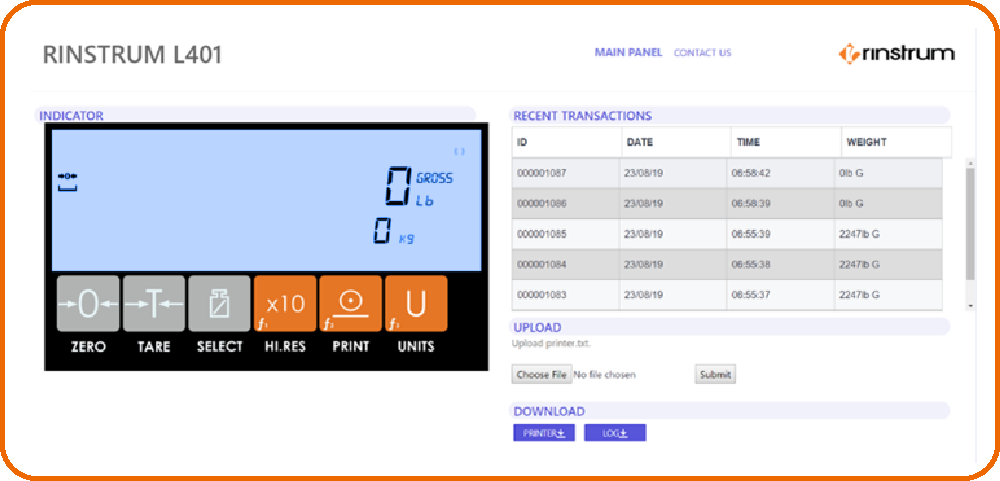

Web interface enabling viewing weight data and password protected downloading and clearing of Log.csv file

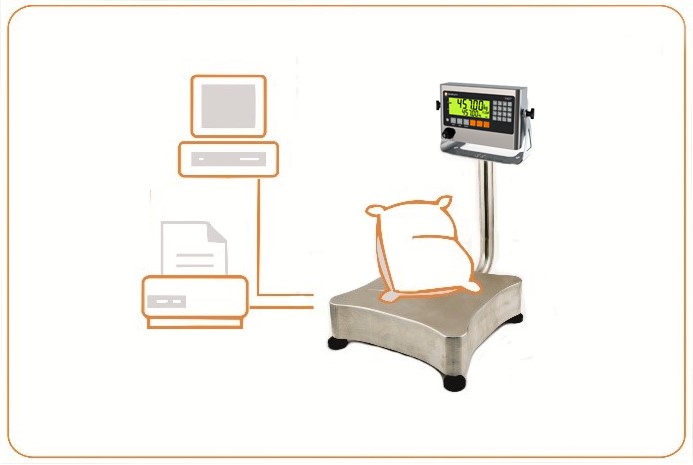

Programmable printing for customized dockets and reports can support two separate printers

• Comprehensive print tokens allow for all instrument data to be printed in a variety of formats
• Custom print strings can be assigned to multiple instrument events, for example long and short press of a print key.

Custom Unit Switching allows for complete flexibility

• programme for standard weight units (kg, lb, t etc) or
• define alternative weighing units for your application (litres or force for example)

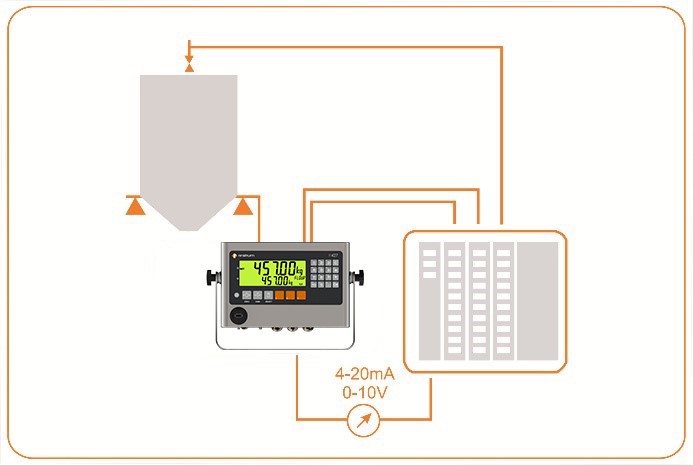

Flexible set point configuration for improved system integration.  A set point can be individually configured to instrument status or weight target triggers.  Each set point can be:

• independently configured for a given function
• associated with a given output
• configured for high or low logic
• defined to use a given weight source – Gross, Net, Alternate Units or Piece count

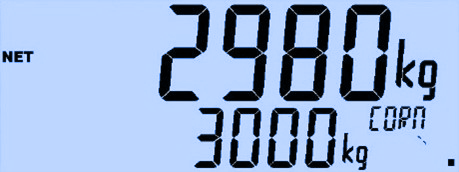

The large multi-line display assists the operator by displaying current weight and total weight and product name.
