Description
Key Highlights & Features
- 100,000 d @ 0.25 µV/d
- Compatible with M400 Accessory cards and other Rinstrum options
- Completed cabling within the unit
- D700/D800 Remote display compatibility with traffic light control
- Integrated thermal tape printer (3 inch)
- Polycarbonate, IP66 Enclosure
- Save400 software for cloning applications
- Viewer Software for configuration and diagnostics
Product Description

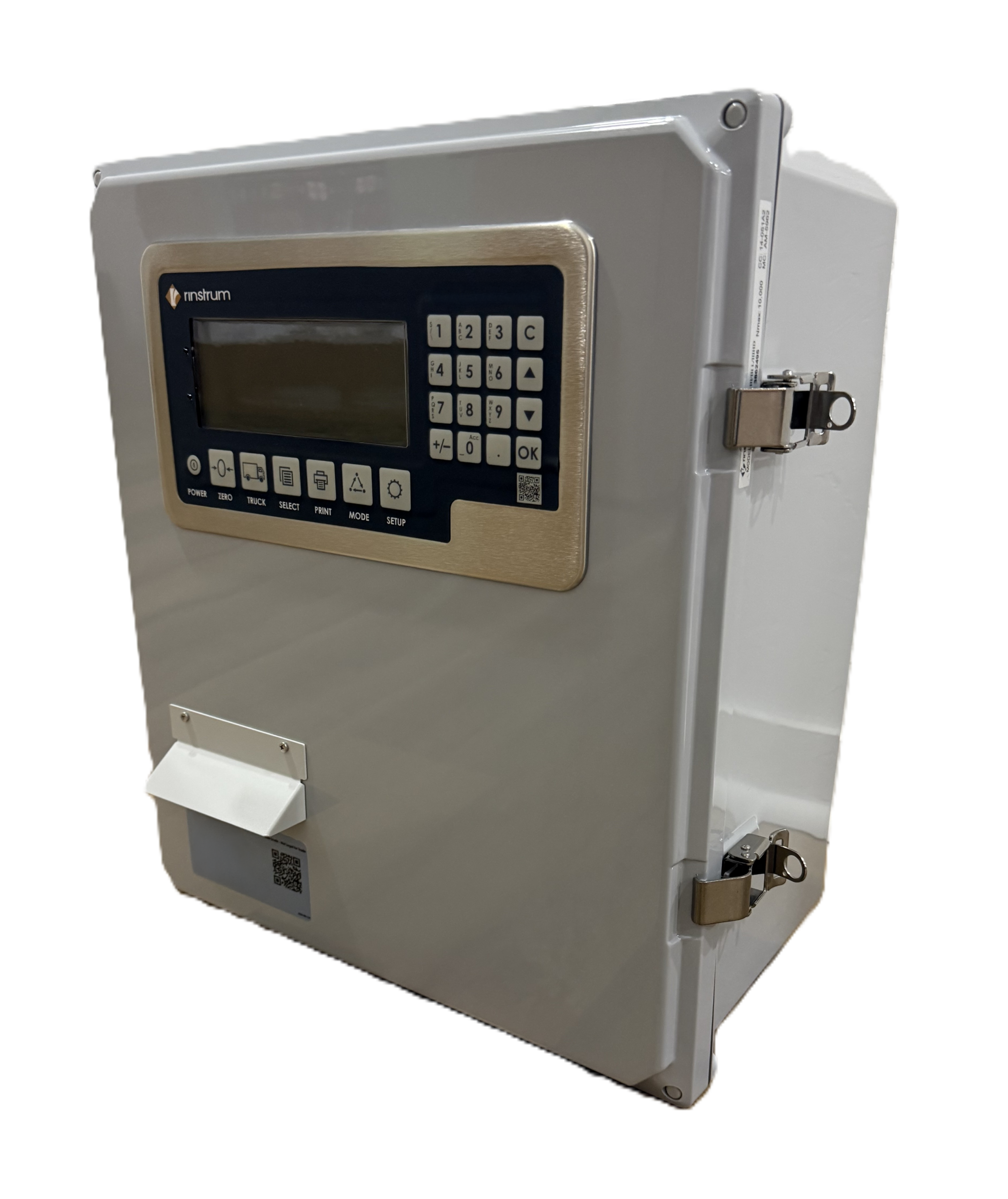

The K401, K404, K405 and L404 are designed for truck weighing. They allow for a range of operational scenarios based on the version selected. Dedicated keys simplify the operator interface. Additionally, the alpha-numeric keypad allows for easy entry of tare weighs and truck IDs. Console includes a stainless-steel panel mounted weight indicator and built-in printer.
The following operational scenarios can be handled on the kiosk depending on the firmware version:
- Print the weight of the truck on the scale.
- Weigh a truck in a single pass using its tare weight.
- Weigh a known truck with a stored Truck ID and preset tare and accumulate the statistics on that truck ID.
- Two pass weighing with a weigh in followed by a weigh out. The ticket will show time/date, weigh-in, weigh-out and net weights.
- Automatic temporary Truck ID to simplify weigh-in/weigh-out for fast weighing throughput. The temporary Truck ID is removed once the weigh-out is complete.
- Clicker system for truck identification.
- Web interface.
R400 Indicators are ideal for weight bridges:
- Isolated communication modules for protection against lightning.
- All accessory modules can be swapped without recalibration.
- Indicator configuration and setup can be reused and easily uploaded using the opto-link on the front panel.
Color coded terminals are used to designate 24 VDC versus 120 VAC.
The standard polycarbonate enclosure is IP66 (NEMA) rated. Other enclosures available on request.

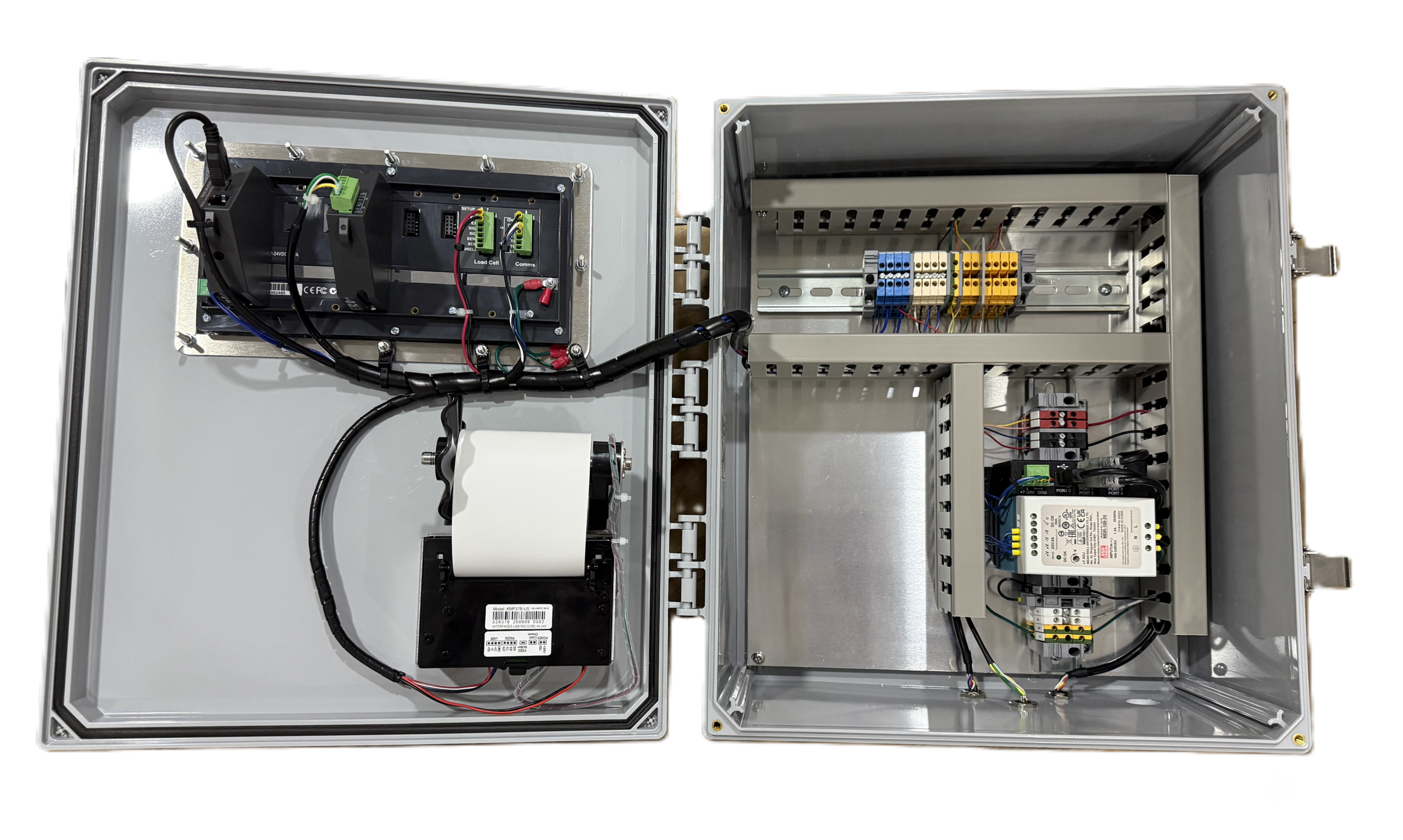

A typical configuration would include:
- Door mounted indicator.
- Door mounted printer.
Cabled and with a basic configuration for the application firmware that has been selected.
Console Options
| Polycarbonate (Standard) | 16 in x 14 in x 7 in (400 mm x 350 mm x 180 mm) |
| Powder coated steel* | 16 in x 14 in x 8 in (400 mm x 350 mm x 200 mm) |
| Stainless steel* | 16 in x 14 in x 8 in (400 mm x 350 mm x 200 mm) |
Please contact Rinstrum to discuss your configuration requirements.
Smart Weighing
Superior Diagnostics
R400 series indicators have a range of diagnostic tools and features that aid system commissioning and maintenance.
- Millivolt Test Functions and IO Testing
- Modules can be swapped in and out without recalibration of the indicator, saving time and effort
- Red Status LED on each I/O, both on I/O module and Relay card.
- Overload counter to review if the scale has been overloaded.
- Viewer Software connection via RinLink to assist with additional configuration and storing applications for future development as well as supporting existing installations.
..now that’s smart weighing.
Product Downloads
The following files are available for download for the R423 Truck Controller. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.
To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.
If a save dialogue box does not appear, right click on the link and select save target as.
