Description
Key Highlights & Features
- Max Capacity - 1,000 to 20,000 lbs
- Mild Steel frame/pan
- Stainless Steel load cell
- Standard sizes are 48in (122cm) x48in (122cm) and 60in (152cm) X 60in (152cm). Options available from 18in (46cm) x 18in (46cm) up to 120in (305cm) x120in (305cm)
Product Description

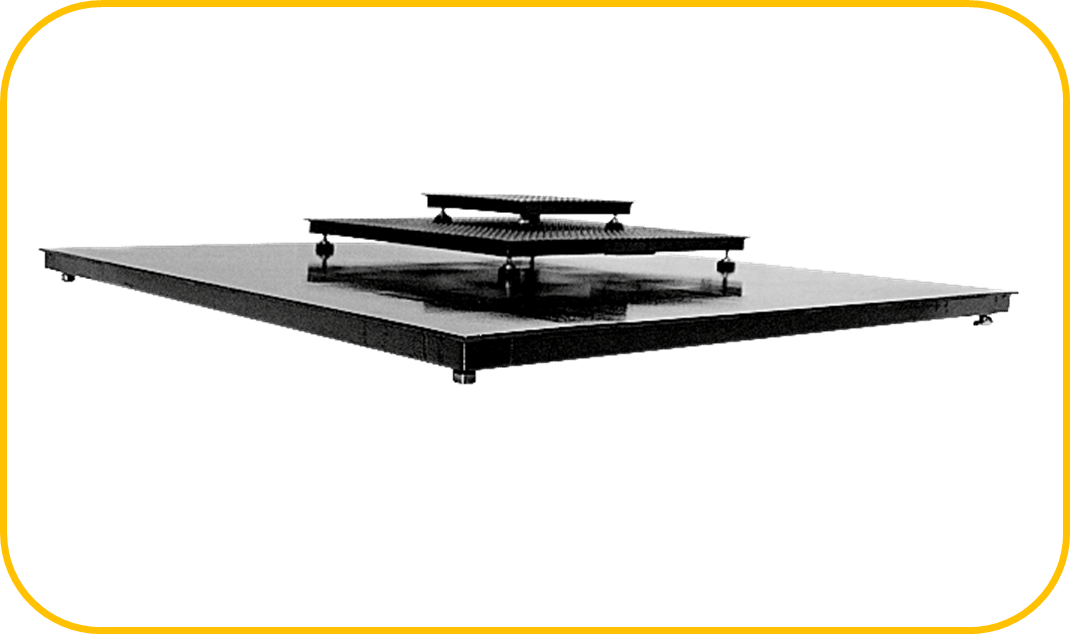

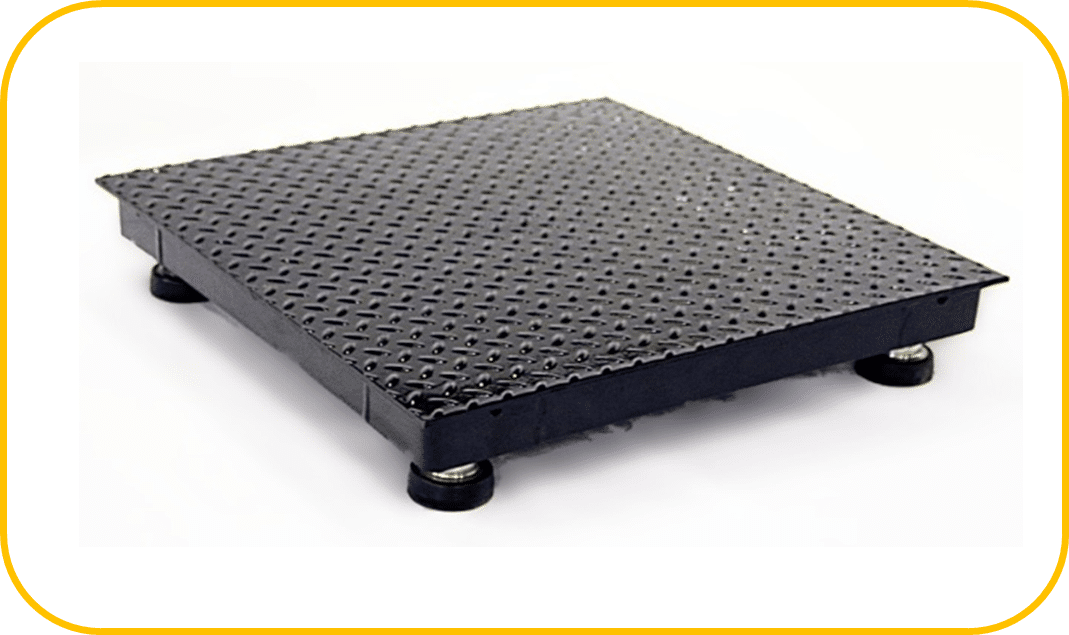

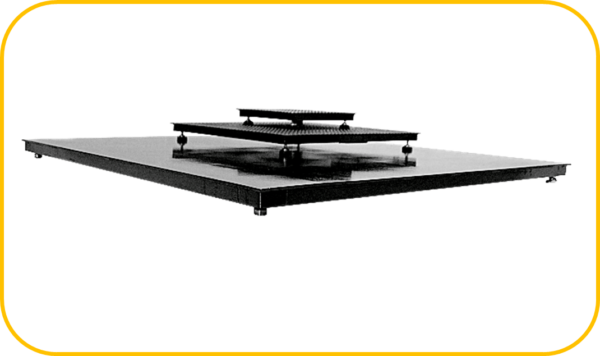

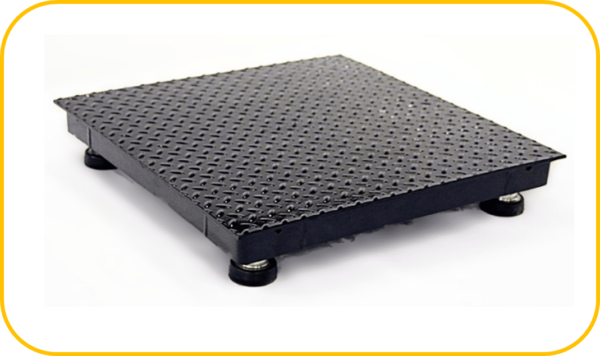

Rinstrum Floor Scales are durable and cost-effective. They come with a mild steel platform and are equipped with Stainless Steel load cells. The base can be paired with a variety of indicators depending on the functionalities required and operating environment. The scale platforms can be provided in multiple frame sizes on request to cater to specific applications.
Rugged Construction
- Heavy duty construction for Tough Industrial environments
- Four Stainless Steel NTEP Certified Load cells
- Stainless Steel (Captured Ball in Foot) Load cell Feet
- Epoxy primer with Epoxy Finish coat
Simple Maintenance and Operation
- Adjustable leveling feet
- Stainless Steel Junction box
Proven Rinstrum Indicators
- NTEP Certified R320 or IP69 waterproof X320 indicators for general purpose weighing
- NTEP Certified R420/R423 for integrated Weighing solutions
- NTEP Certified C520 for connection with Ethernet IP or other PLC protocols
|
|

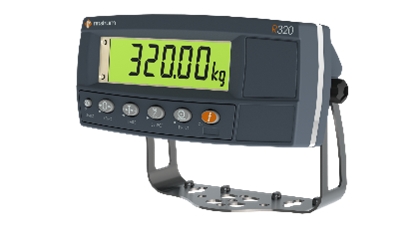

R320
|
|
|
X320
|
Smart Weighing
Product Downloads
The following files are available for download for the Floor Scale. Ensure you select the correct documentation for your unit's software version. Check back regularly for software and other updates.
To download files, please click on a filename below. A save dialogue box should appear allowing you to specify your save location.
If a save dialogue box does not appear, right click on the link and select save target as.
Files
 Floor Scale - Brochure
24/04/2023 - 298KB (PDF) file - RFS-801-100 |
|
| Floor Scale - Datasheet
24/04/2023 - 237KB (PDF) file - RFS-700-100 |
